Large Item Dimensions for Right-size Packaging

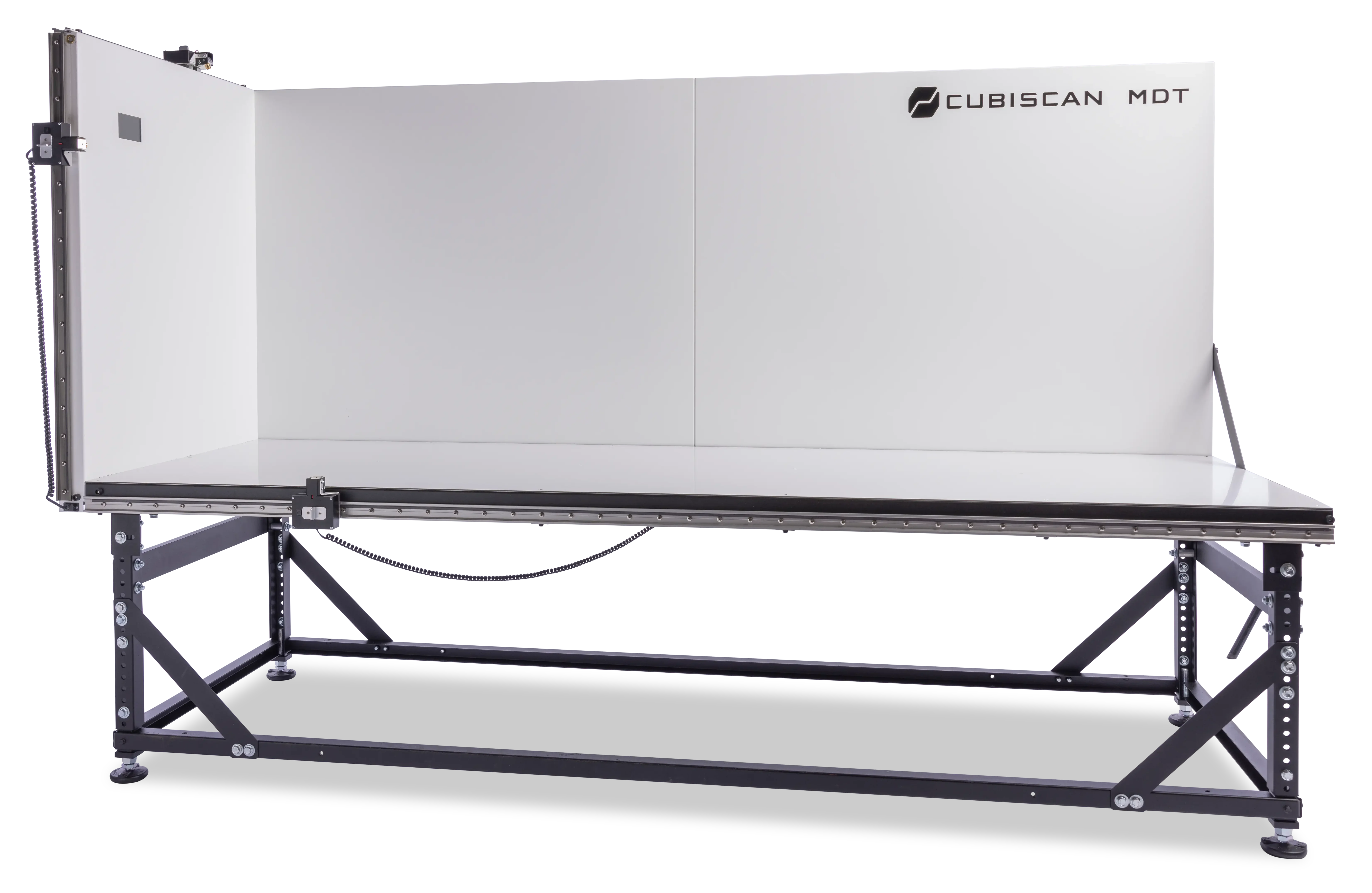

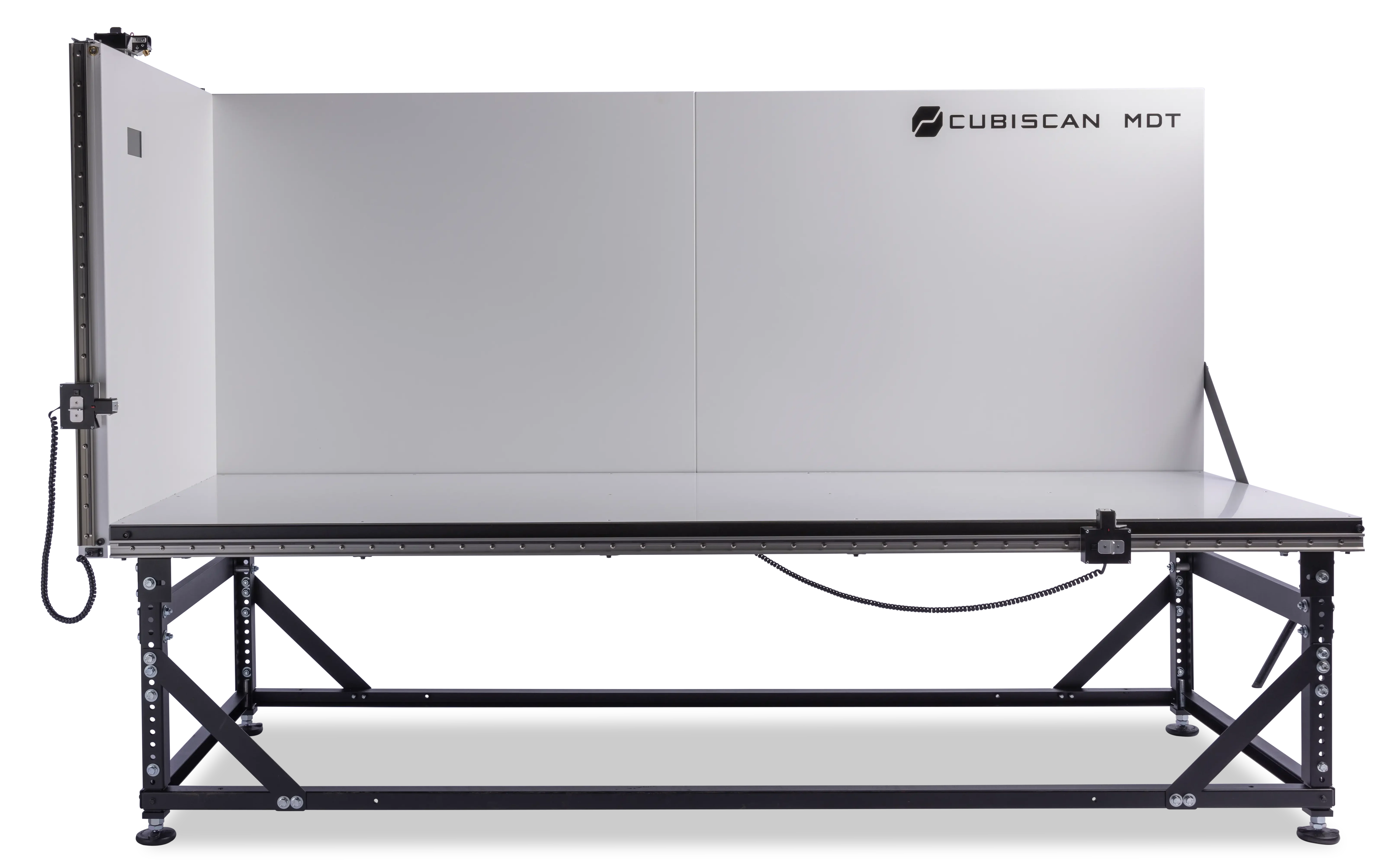

ThE Cubiscan MDT
Measure large, bulky items like kayaks, car parts, and cabinets to feed on-demand box-making equipment

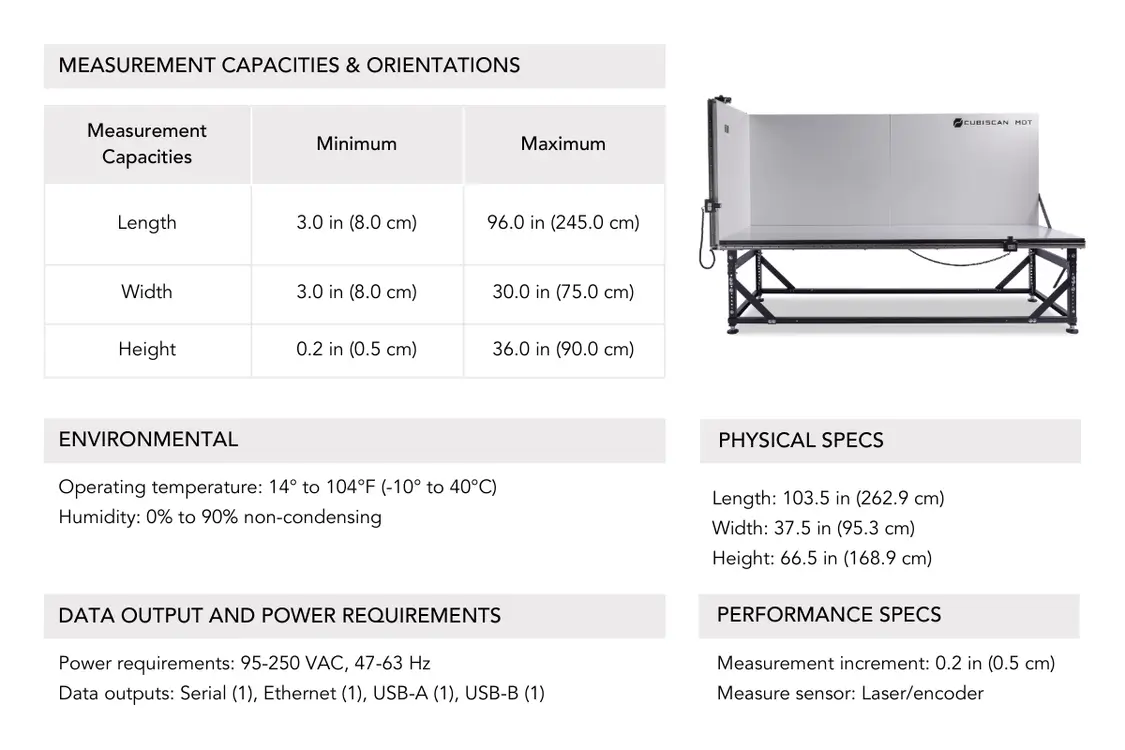

Measurement capacity: 96″L x 30″W x 36″H
Large Item Dimensions for Right-size Packaging
ThE Cubiscan MDT
Measure large, bulky items like kayaks, car parts, and cabinets to feed on-demand box-making equipment
Measurement capacity: 96″L x 30″W x 36″H
The Pain of Bad Item Data
Right-size Your Packaging
You want to right-size your packaging, but don’t have the product data you need for it to work.
Unreliable Item Master
It’s difficult to manually measure large, odd-shaped items. Eyeballing them with a tape measure is one solution, but it’s not accurate enough for box-making applications.
Packaging Optimization
It’s hard to dimension, pack, and ship large, finished goods like shovels, rugs, and automobile parts. Carton selection is a guess at best and shipping costs are high.
The Cubiscan MDT Can Help
Right-size Your Packaging
Feed dimensional data directly into your on-demand box making equipment and print custom packaging for your products.
More Effective WMS
A WMS working with accurate product data will tell your associates how to slot, pick, pack, and fulfill orders most efficiently. You get faster fulfillment, fewer errors, and higher production throughput.
Optimize Your Fulfillment
Automate your carton selection and stop shipping excess air in your packages. Product dimensions and weight help you estimate shipping costs and reduce the cubic volume of your packages, lowering shipping and dunnage costs.
How The Cubiscan MDT is Different
96 inch
Measurement Capacity
Visible Dimensioning
The Cubiscan MDT shines green lasers onto your product so you can easily identify the item’s max dimensions on the x,y, and z axes.
Measure Long Parts and SKUs
The Cubiscan MDT was designed with long, finished goods in mind. Our customers find it excels at dimensioning car parts, cabinets, and floor and yard care products (brooms, mops, shovels, rakes), etc.
Get Your Data Where It Needs To Go
Data Integration Options
Qbit Cloud
All measurement data is stored in a cloud database you can access anytime, anywhere. That data can be pulled via rest API as often as you’d like to integrate with your WMS, OMS, ERP, etc.
Qbit DB
Measurement data is stored in a local or server database on the laptop next to your Cubiscan. The data can be exported as a text file, ODBC, or a push via rest API. Multiple instances of DB can all see the same data.
Typical Use Case
The Cubiscan MDT is the perfect dimensioning system to measure finished goods for right-size packaging and master data applications. Typical operation goes as follows…
Step 1
Scan The SKU Barcode
Scan the product ID or manually enter the barcode number to start the process. The product dimensions will be tied to this barcode.
Step 2

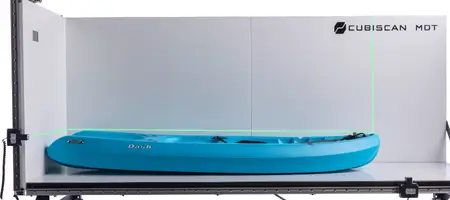

Dimensioning the Item
Place the item on the Cubiscan and move the lasers on the x,y, and z planes. Once in position, trigger the measurement to capture the dimensions.
Step 3
Data Collected & Transferred
Dims associated to the item are stored in Qbit DB or transferred into your box-making software to begin the packaging process.
Step 4
Slotting, Put Away, & Box Building
You’re now ready to efficiently slot product and build custom packaging for better picking, packing, and fulfillment.
Cubiscan Certified Agreement (CCA)
The Cubiscan Certified Agreement (CCA) is the most effective way to annually verify and maintain your Cubiscan. Along with certifying each Cubiscan, we will train your staff on how to operate it properly.
Installation & Warranty Options
On-Site Installation
We send a tech to your site to set up the machine, calibrate the software, and train your staff how to properly operate and care for the system.
Remote Installation Support
On a scheduled call, we help walk you through the step-by-step mechanical set up, software configuration, and calibration verification of your Cubiscan dimensioner.
One Year Factory Warranty
This is included with every Cubiscan dimensioner. It covers part defects and part replacement. Remote phone support is also provided as part of the one year factory warranty.
Extended Factory Warranty
The extended FW is an add on to the original factory warranty. Coverage includes TSS, part repair or replacement, and labor.
- Three year maximum
- Must be purchased at time of initial product purchase
On-Site Installation
We send a tech to your site to set up the machine, calibrate the software, and train your staff how to properly operate and care for the system.
Remote Installation Support
On a scheduled call, we help walk you through the step-by-step mechanical set up, software configuration, and calibration verification of your Cubiscan dimensioner.
One Year Factory Warranty
This is included with every Cubiscan dimensioner. It covers part defects and part replacement. Remote phone support is also provided as part of the one year factory warranty.
Extended Factory Warranty
The extended FW is an add on to the original factory warranty. Coverage includes TSS, part repair or replacement, and labor.
- Three year maximum
- Must be purchased at time of initial product purchase
